Digital Gauge

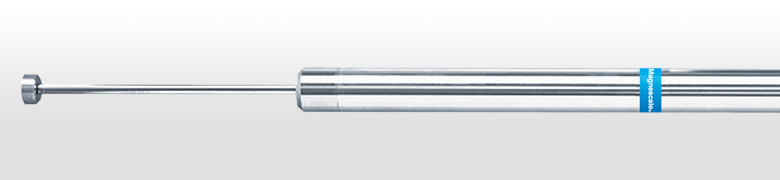

DK205
Features
High accuracy, rugged gauges. Suitable for installation on machine.
Specifications
| # | DF805S series Specifications | - |
|---|---|---|
| 1 | Model | DK205 |
| 2 | Output | A/B/Z phase voltage-differential line driver output(compliant with EIA-422) |
| 3 | Maximum resolution※1 | 0.5 μm |
| 4 | Measuring range | 205 mm |
| 5 | Accuracy (at 20℃) | 6 μm |
| 6 | Reference point | One location (at 5 mm position of spindle movement) |
| 7 | Maximum response speed | 250 m/min |
| 8 | Vibration resistance(10 ～ 2000 Hz) | 150 m/s2 |
| 9 | Impact resistance (11 ms) | 1500 m/s2 |
