Laser Scales

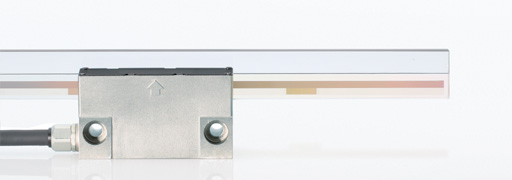

BS65
Laserscale easily achieves measurement and control by ultra high resolution less than 1nm.
Sinusoidal wave of approx.138nm signal period is generated by a hologram scale with high diffraction efficiency and a high resolution detecting head based on grating interference method, strong against disturbance by air pressure or current, plus easy to install (BS series).
Features
High accuracy LASERSCALE with built-in optical zero point
Signal wavelength of 138nm
High accuracy, high resolution laser scale :Accuracy : L < 460 : (0.1+0.4L / 100) μm p-p(L=measuring length in mm)
Resolution :0.07nm
High accuracy optical reference point :± 0.1 μm
Measuring length :160 mm to 960 mm / 6.29" to 37.79
Easy installation
Little affected by disturbed air and changing atmospheric pressure.
Specifications
| # | Specifications | Specifications |
|---|---|---|
| 1 | Measuring length ： L(mm) | 160/260/360/460/560/660/760/860/960 |
| 2 | Overall length | Measuring length＋36mm |
| 3 | Max. travel length | Measuring length＋10mm（on each side5mm） |
| 4 | Accuracy（at 20℃） | L＜460：（0.1＋0.4L/100）μmp-p L≧460：3μmp-p L：Measuring length（mm） |
| 5 | Grating pitch | Approx. 0.55μm |
| 6 | Signal pitch | Approx. 0.138μm |
| 7 | Reference point accuracy | ±0.1μm |
| 8 | Reference point | At the center |
