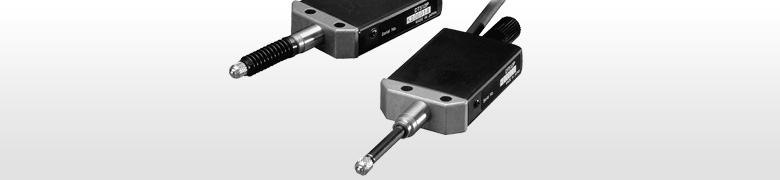

Digital Gauge

Compact and slim gauges with 1μm resolution

Excellent resistance to workshop conditions (DT512P: IP64)

Resistant to oil, water, dust, vibration, and shock.

Measuring range: 205 mm / 8.07

Accuracy: 6 μm

Maximum resolution :12 mm / 0.47

Magnet feeler (205BP)

Compact size ideal for designing into machines:12 x 35 x 116 mm / 0.47'' x 1.38'' x 4.57'' (D x W x L)

#	Specifications	-
1	Model	DT512N / DT512P
2	Measuring range	12mm
3	Resolution	1μm
4	Accuracy(at 20℃)	6μm
5	Operating temperature	0℃～50℃
6	Storage temperature	-10℃～60℃
7	Cable length	2m
8	Diameter of stem	φ8(0～0.015)mm
9	Feeler	Feeler tipped with 3 mm dia. steel ball with M2.5p x 0.45 screw on fitting end
