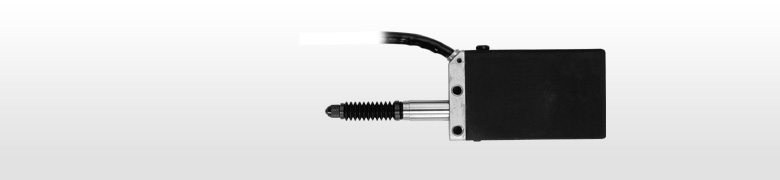

Digital Gauge
DL310B
Features
Slim, compact gauges
Specifications
| # | Specifications | - |
|---|---|---|
| 1 | Model | DL310B |
| 2 | Measuring range | 10mm |
| 3 | Maximum resolution | 10μm |
| 4 | Accuracy(at 20℃) | 10μm |
| 5 | Measuring force(at 20℃) | 1.5Nor less |
| 6 | Output signal | A/B phase by NPN open collector (12 VDC, 10 mA or less) |
| 7 | Maximum response speed*1 | 120m/min |
| 8 | Operating temperature | 0～50℃ |
| 9 | Storage temperature | -10～60℃ |
